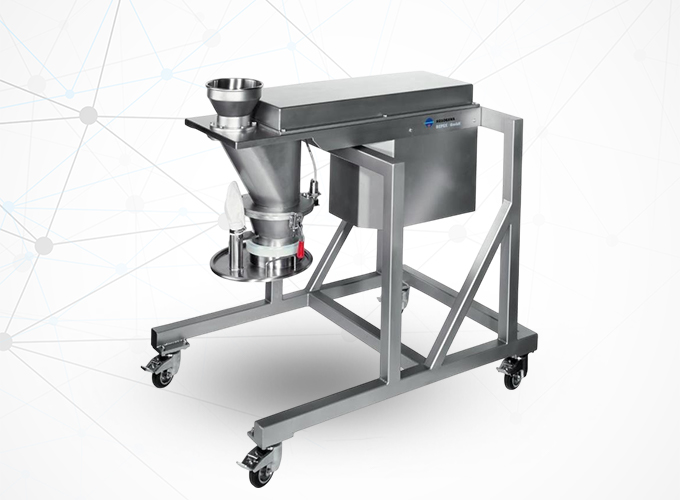

The Underdriven Co Mill by Propharm Technologies is a versatile size-reduction machine designed for granulation, milling, and de-agglomeration of dry and wet products in the pharmaceutical, chemical, food, and cosmetic industries. The underdriven design ensures compact installation, ease of cleaning, and superior safety.
Bottom drive for better stability.
Tool-less assembly and disassembly.
Different screens and impellers.
Compact, underdriven design for minimal footprint
Gentle milling with minimal heat generation
Wide range of screen types and impellers
GMP-compliant construction
Easy integration into continuous or batch operations
Capacity: 20 kg/h to 1500 kg/h.
Screen sizes: 0.5 mm to 25 mm.
Screen Type Round/Hex/Slotted (perforated or wire mesh)
Impeller Types Round, Knife, or Impact type (customizable)
Drive Type Belt or direct drive
| Model | Full Volume (L) | Work Volume (L) | Length (mm) | Breadth (mm) | Height (mm) | Motor HP | Approx. Weight (kg) |
|---|---|---|---|---|---|---|---|
| PRO-UDCM-100 | 100 | 70 | 800 | 600 | 1200 | 3 | 250 |
| PRO-UDCM-250 | 250 | 175 | 1000 | 700 | 1300 | 5 | 350 |
| PRO-UDCM-500 | 500 | 350 | 1200 | 800 | 1400 | 7.5 | 500 |
| PRO-UDCM-1000 | 1000 | 700 | 1500 | 1000 | 1600 | 10 | 750 |
| PRO-UDCM-2000 | 2000 | 1400 | 1800 | 1200 | 1800 | 15 | 1200 |
