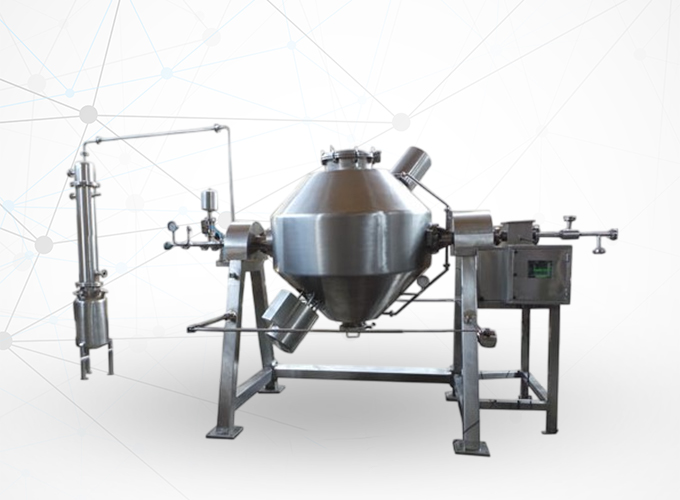

Propharm Technologies is a manufacturer and exporter of Roto Cone Vacuum Dryer in Mumbai and India. For drying, mixing, and homogenising powders, granules and pastes in vacuum.
Conical shape for uniform drying.
Reduced drying time.
Low temperature drying.
Gentle handling of products.
Ideal and ceaseless vacuum maintenance during handling.
Working rotary cone connector thoroughly watertight during activity.
Simple stacking with a fast release.
Uniform material rearranging over the warmed contact surface of the cone.
Appropriate size condensers and recipients for dissolvable assortment.
Preventive controls on Energy heads to keep up operational productivity.
Interlocking with Drive through Proximity Switch.
| Model | Full Volume (L) | Work Volume (L) | Length (mm) | Breadth (mm) | Height (mm) | Motor HP | Approx. Weight (kg) | Operating Pressure (mmHg) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|
| PRO-RCVD-50 | 50 | 35 | 1000 | 800 | 1300 | 3 | 500 | -760 mmHg | Up to 200°C |
| PRO-RCVD-100 | 100 | 70 | 1200 | 900 | 1500 | 5 | 750 | -760 mmHg | Up to 200°C |
| PRO-RCVD-200 | 200 | 140 | 1400 | 1000 | 1600 | 7.5 | 1100 | -760 mmHg | Up to 200°C |
| PRO-RCVD-500 | 500 | 350 | 1800 | 1200 | 1800 | 10 | 1500 | -760 mmHg | Up to 200°C |
| PRO-RCVD-1000 | 1000 | 700 | 2000 | 1500 | 2000 | 15 | 2500 | -760 mmHg | Up to 200°C |
| PRO-RCVD-2000 | 2000 | 1400 | 2500 | 1800 | 2200 | 20 | 3500 | -760 mmHg | Up to 200°C |
