Propharm Technologies is a Tray Dryer Manufacturer and Propharm Cone Mill Exporter in Mumbai and India. Perfect for granulation of wet powders and manufacture of uniform granules.
Uniform granulation oscillating motion.
Interchangeable screens.
Easy maintenance and cleaning.
Technical Specifications:
Capacity: 30 kg/h to 200 kg/h.
Creen sizes: 0.5 mm to 10 mm.

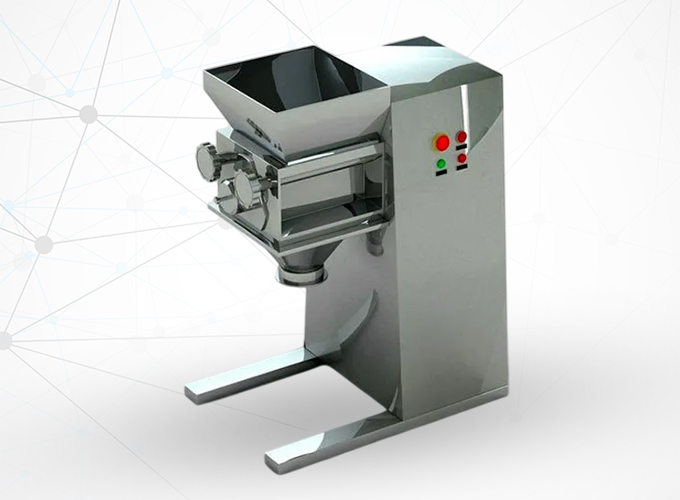

Efficient reciprocating type Granulator. It is suitable for granulating DRY & WET materials.
A totally enclosed gearbox is mounted on a base pillar at a convenient Height
Every gearing is covered in oil bath. There is no need of grease or other external lubrication.
| TYPE | PRO-OG-8 | PRO-OG-12 |
|---|---|---|
| Hopper Size | 8” (200 mm) | 12” (300 mm) |
| Electric Motor | 1 H.P. 1440 R.P.M. 440 V, 3 Phase, 50 Cycles, A.C. | |
| Output * | 200 KGS/Hr. | 650 KGS/ Hr. |
| Overall Dimensions (mm) | 736 L x 450 W X 1207 H | 1095 L x 628 W X 1518 H |
| Case Dimensions (cm) | 950 L x 650 W x 1300 H | 1300 L X 850 W X 1700 H |
| Net Weight | 250 Kgs | 500 Kgs |
| Gross Weight | 370 Kgs | 620 Kgs |
