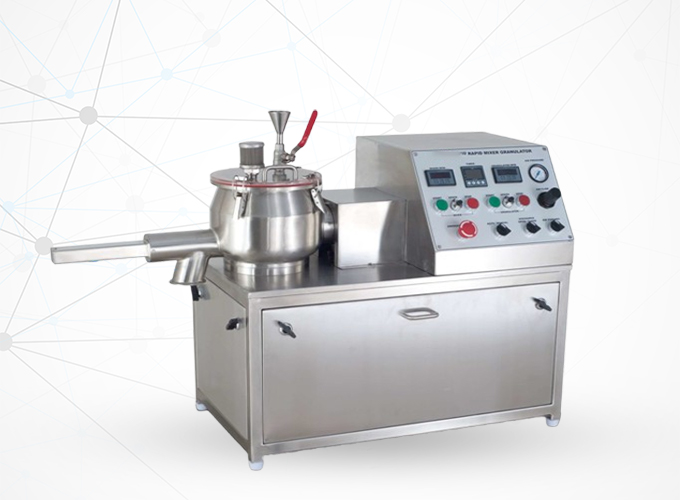

Propharm Technologies is a manufacturer and exporter of High Shear Mixer Granulator in Mumbai and India. Designed to meet the special needs of tablet formulation technology by reducing processing time and ensuring homogeneous mixing, wetting, nucleation, and granule size growth.
Unique design with Impeller, Granulator, Online Co-mill, and Side discharge valve
Constructed in SS 304/316L
Pneumatically and electromechanically operated impeller lifting options
ATEX Compliant option available
Increase in productivity by up to 50%
Superior performance with 100% accuracy
Reduced validation batches and power savings
High uniformity, very different proportion also can uniformly mixing
Short mixing time, about 5 ~ 10 min/batch finished
Good tightness, use air bag to clamp the cover
Multi safety interlock device, high safety
Optional equipment for different product feature
All the design and manufacture are qualified cGMP standard and FDA requirement. No belts, pulleys, or chains, reducing maintenance.
| Model | Full Volume(L) | Work Volume(L) | Capacity:Kgs/Batch | Size (W x L x H) (MM) |
|---|---|---|---|---|
| PRO-HSMG-1 | 1 | 0.4-0.8 | 0.2-0.4 | 310x560x753 |
| PRO-HSMG-5 | 5 | 2-4 | 1-2 | 350x600x800 |
| PRO-HSMG-20 | 20 | 8-16 | 4-8 | 500x1360x1210 |
| PRO-HSMG-100 | 100 | 40-80 | 20-40 | 700x1600x1350 |
| PRO-HSMG-150 | 150 | 60-120 | 30-60 | 850x1900x2100 |
| PRO-HSMG-250 | 250 | 100-200 | 50-100 | 900x2400x2500 |
| PRO-HSMG-300 | 300 | 120-240 | 60-120 | 2800x2900x3000 |
| PRO-HSMG-400 | 400 | 160-320 | 80-160 | 2900x3100x3500 |
| PRO-HSMG-600 | 600 | 240-480 | 120-240 | 3000x3300x3900 |
| PRO-HSMG-800 | 800 | 320-640 | 160-320 | 3100x3500x4000 |
| PRO-HSMG-1000 | 1000 | 400-800 | 200-400 | 3200x3800x4100 |
| PRO-HSMG-1200 | 1200 | 480-960 | 240-480 | 3300x4000x4300 |
