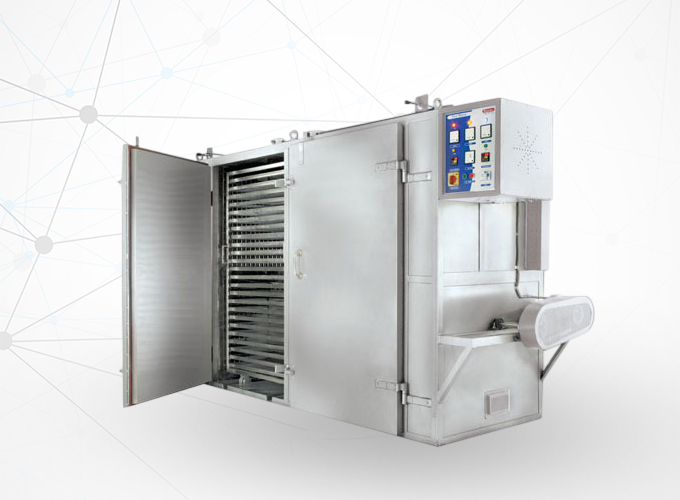

Propharm Technologies is a Tray Dryer Manufacturer and Tray Dreyer Exporter in Mumbai and India. Suitable for the drying of granulated material and powders, made for even air flow and suitable drying.
Uniform heat distribution.
Adjustable air distribution plates.
Easy cleaning and maintenance.
Tray sizes: 800 x 400 x 30 mm.
Drying temperature: Up to 100° C.
Number of trays: 12 to 96. –
| Technical Specifications of Tray Dryer, Vacuum Tray Dryer | |||||
|---|---|---|---|---|---|
| Models | PRO-TD-12 | PRO-TD-24 | PRO-TD-48 | PRO-TD-96 | TD-192 |
| Loading capacity | 12 Trays | 24 Trays | 48 Trays | 96 Trays | 192 trays |
| External Dimension in mm | 1370 X 530X 940 | 1370 X 940X 940 | 1980 X1020 X1880 | 3320X1900X1880 | 3320 X 1900X 1880 |
| Internal Dimension In mm | 840 X 430 X 840 | 840 X 860 X 840 | 1020 X930 X1830 | 1960 X930 X1830 | 1960 X930 X1830 |
| No of Doors | One | One | One | Two | Two |
| No of Blowers | One | Two | One | Two | Four |
| No of motors / H.P.3 Phase 415 Volts. | 1 / 0.5 H.P.3 phase 415 volts. | 1 / 0.5 H.P.3 phase 415 volts | 1 / 1 H.P.3 phase 415 volts | 2 / 1 H.P.3 phase 415 volts | Four / 1 H.P.each3 phase 415 volts |
| Electrical Heating Load for100°C / 200°C / 300°C | 3kw / 6kw / 9kw | 6kw / 9kw / 12kw | 9kw / 15kw / 18kw | 15kw / 21kw / 27kw | 36kw / 42kw / 48kw |
| Steam Heater No. of coils. | 2 | 2 | 2 | 2 | 2 |
| Steam Pressure | 3.3 kg / cm2 | 3.3 kg / cm2 | 3.3 kg / cm2 | 3.3 kg / cm2 | 3.3 kg / cm2 |
| Steam consumption | 25 LBS / hr | 45 LBS/hr | 60 LBS / hr | 80 LBS / hr | 120 LBS / hr |
| Insulation in mm100°C / 200°C / 300°C | 50 / 75 / 75 | 50 / 75 / 75 | 50/75/75 | 50 / 75 / 75 | 50 / 75 / 75 |
| No of Trolleys | Rack System | Rack System | One | Two | Four |
| Tray Size | 812 X 406 X 31 | 812 X 406 X 31 | 812 X 406 X 31 | 812 X 406 X 31 | 812 X 406 X 31 |
| Trolley Dimension | Fixed Racks | Fixed Racks | 840 X 960 X 1780 | 840 X 960 X 1780 | 840 X 960 X 1780 |
